GEN IV MOTORS

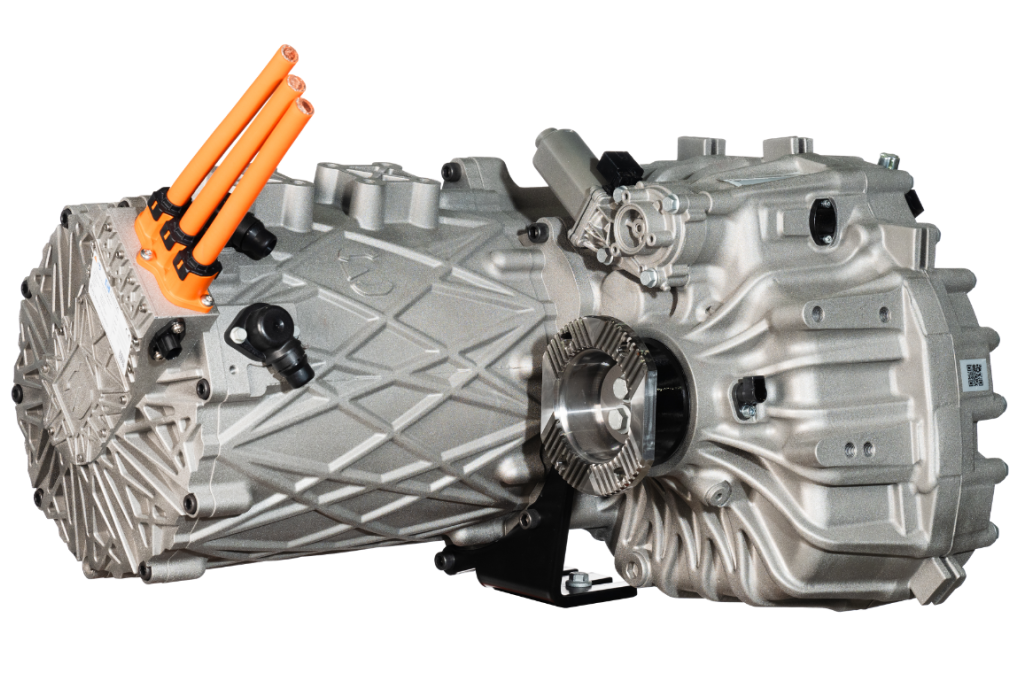

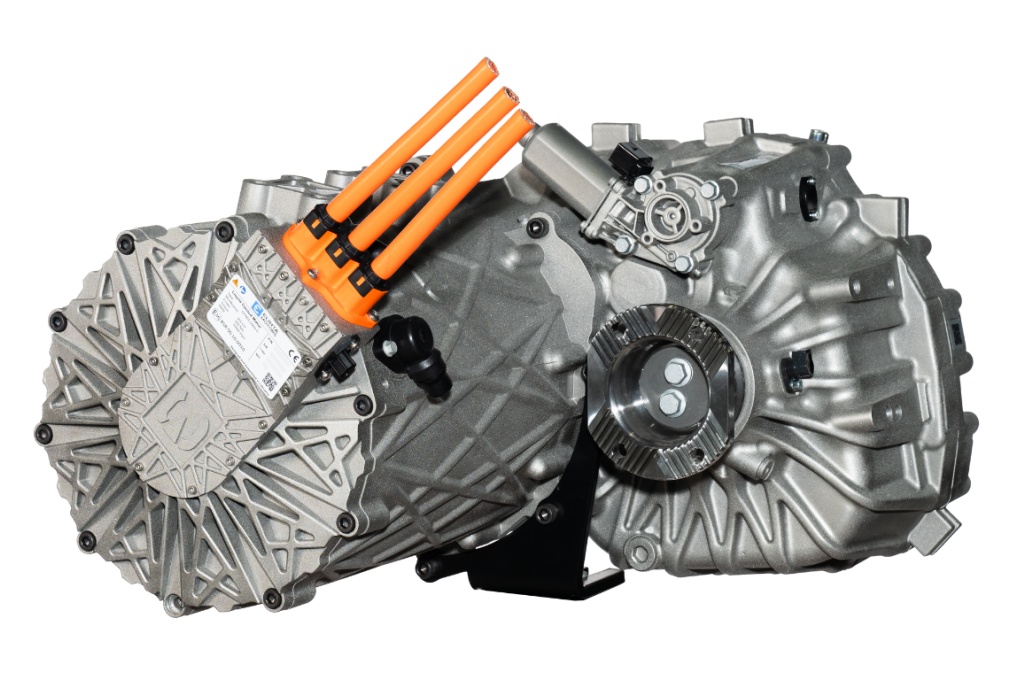

The Elinta Motors EPM.32.HS-ECV Series 2-speed drive unit is designed for medium- to heavy-duty applications, with a load capacity of up to 12-26t.
262 kg Weight
290kW High-Speed-Drive
94.5% Efficiency
EPM.32.HS-ECV
.jpg)
Peak Power, Torque: 350 kW / 5800 Nm
Typical working voltage: 800V
R-85 - 30 min power: 230 kW
Technical data
| Key Features | Power Rating | Other Features |
| Integrated encoder | Peak Power, Torque: 350 kW / 5800 Nm | Insulation Class - H-180C |
| Low torque ripple | Typical working voltage: 800 V | Max Phase Current: 670 A |
| No rare earth materials | R-85 - 30 min power: 230 kW | Coolant 50/50 water-glycol |
| Integrated tachograph sensor | R-85 - 30 min torque: 4100 Nm @ 1st gear | Coolant Flow: 22 - 25 L/min |
| Dual temperature sensors | ||
| Epoxy encapsulated stator | ||
| Working temperature: -40 C - 85 C |
Performance @800V
| Motor Type | Peak Power | Cont. Power | Peak Torque | Cont. Torque |
| EPM.32.60.A | 350 kW | 230 kW | 5800 Nm | 3650 Nm |
| EPM.32.80.A | 350 kW | 230 kW | 7900 Nm | 4100 Nm |
| EPM.32.100.A | 250 kW | 157 kW | 5500 Nm | 2600 Nm |
| EPM.32.120.A | 270 kW | 125 kW | 7900 Nm | 3500 Nm |

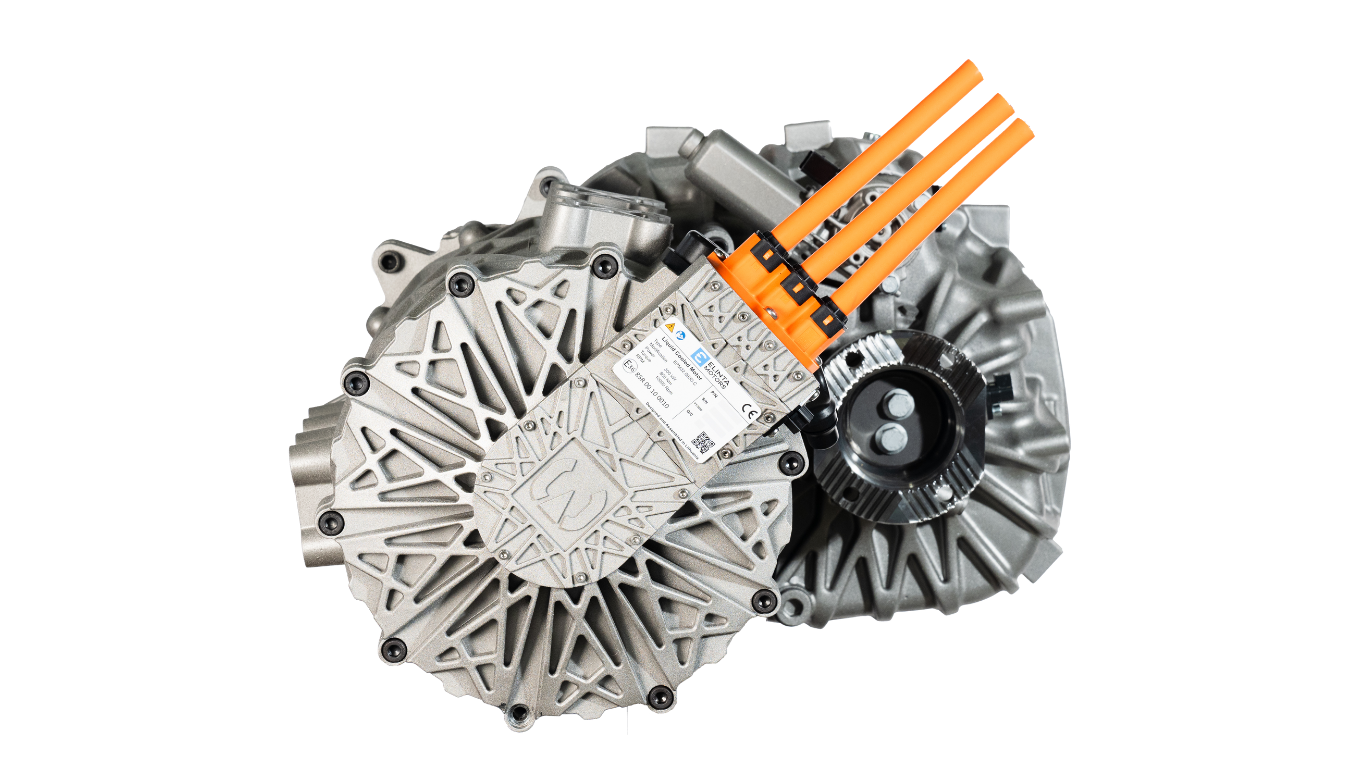

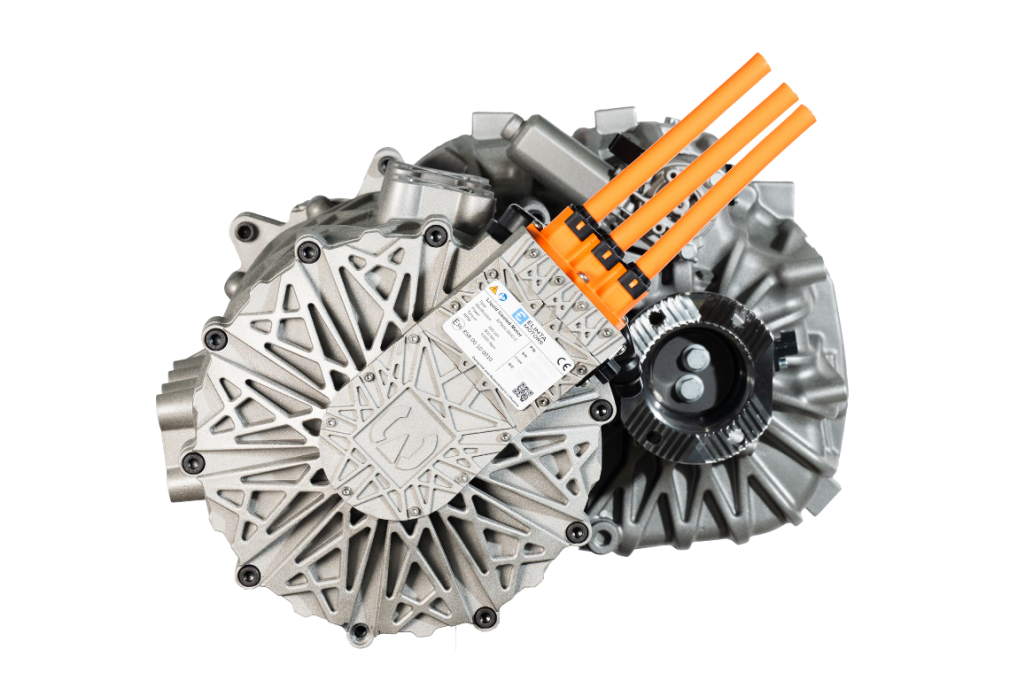

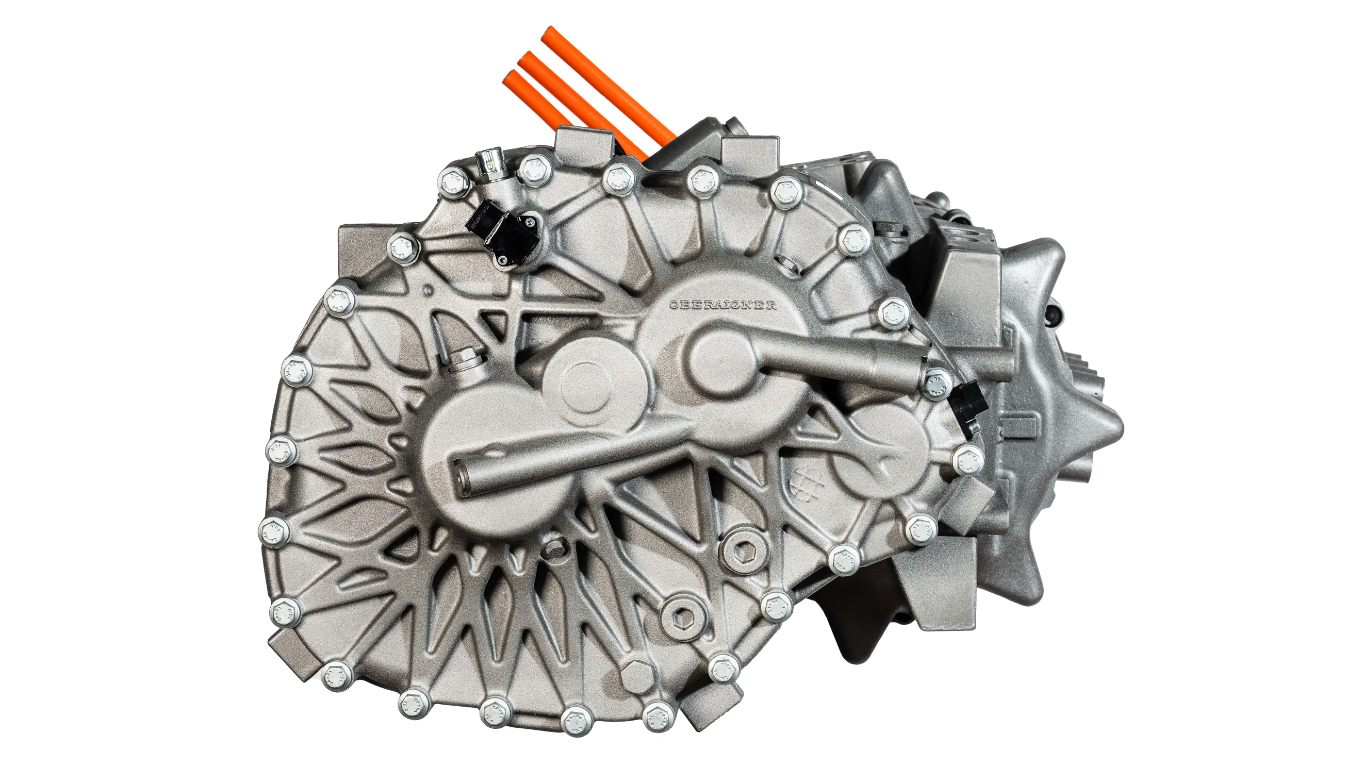

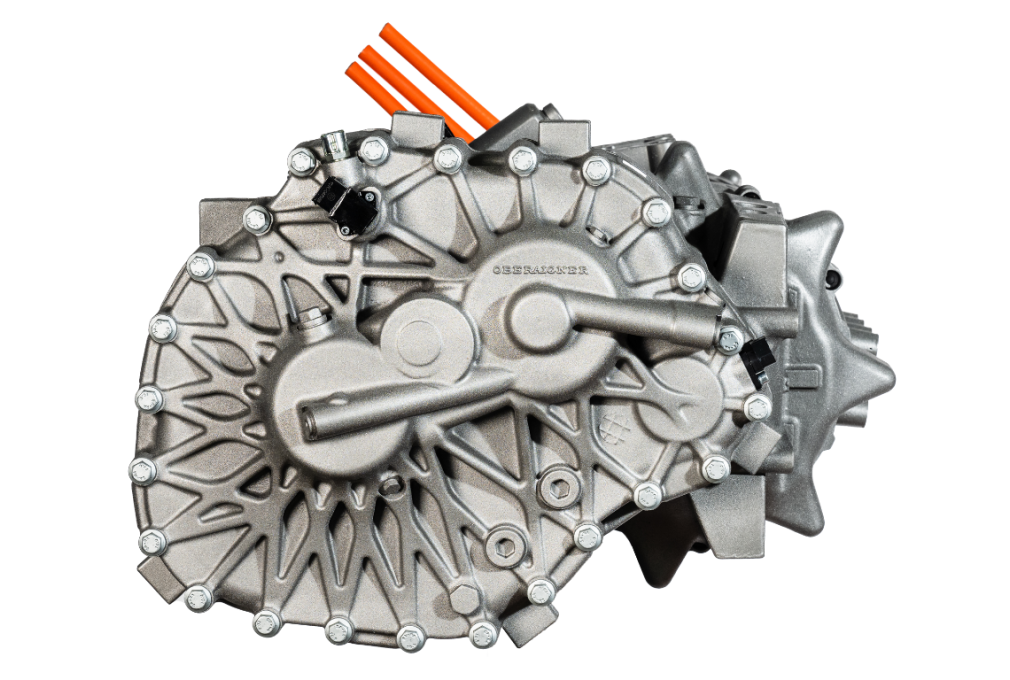

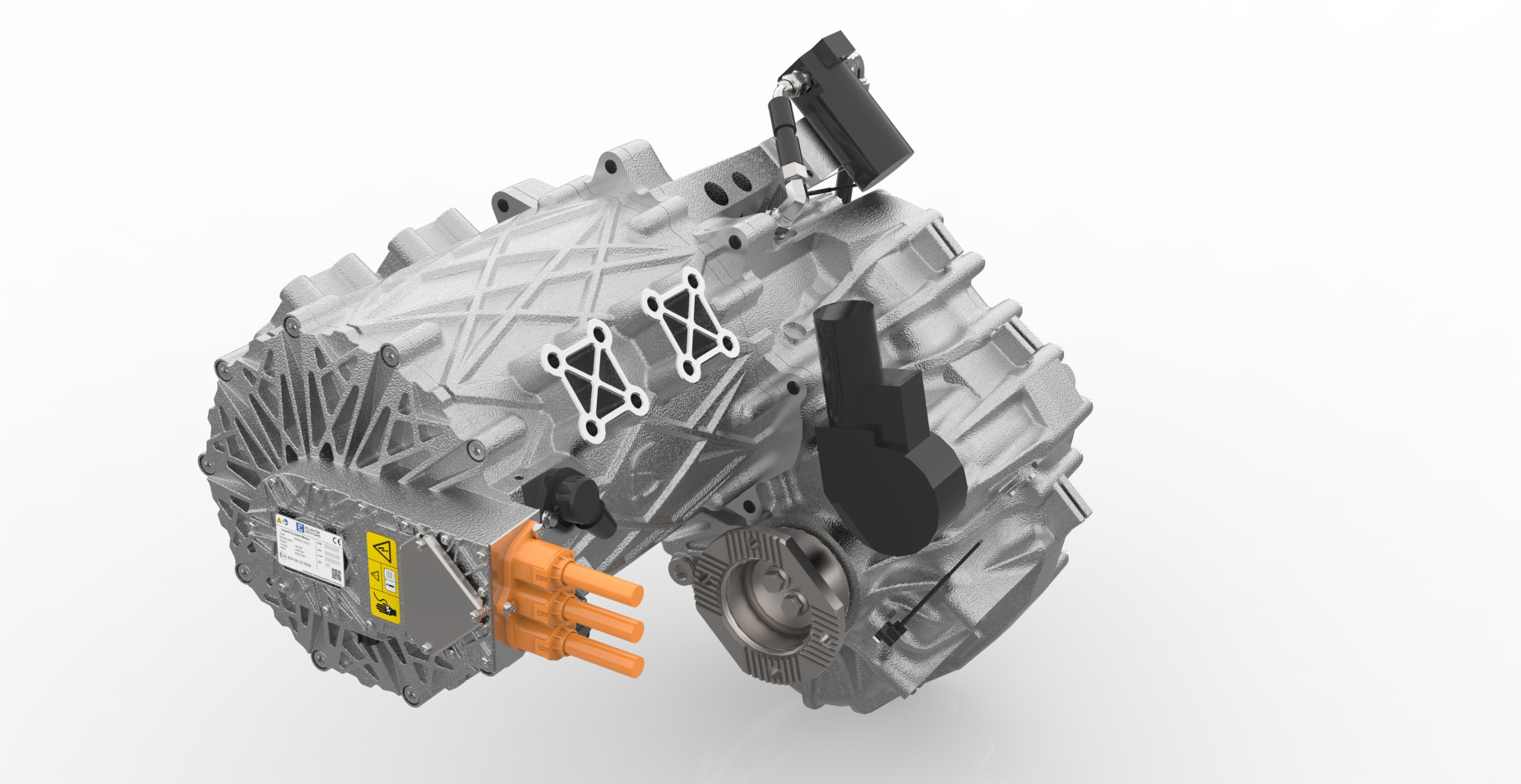

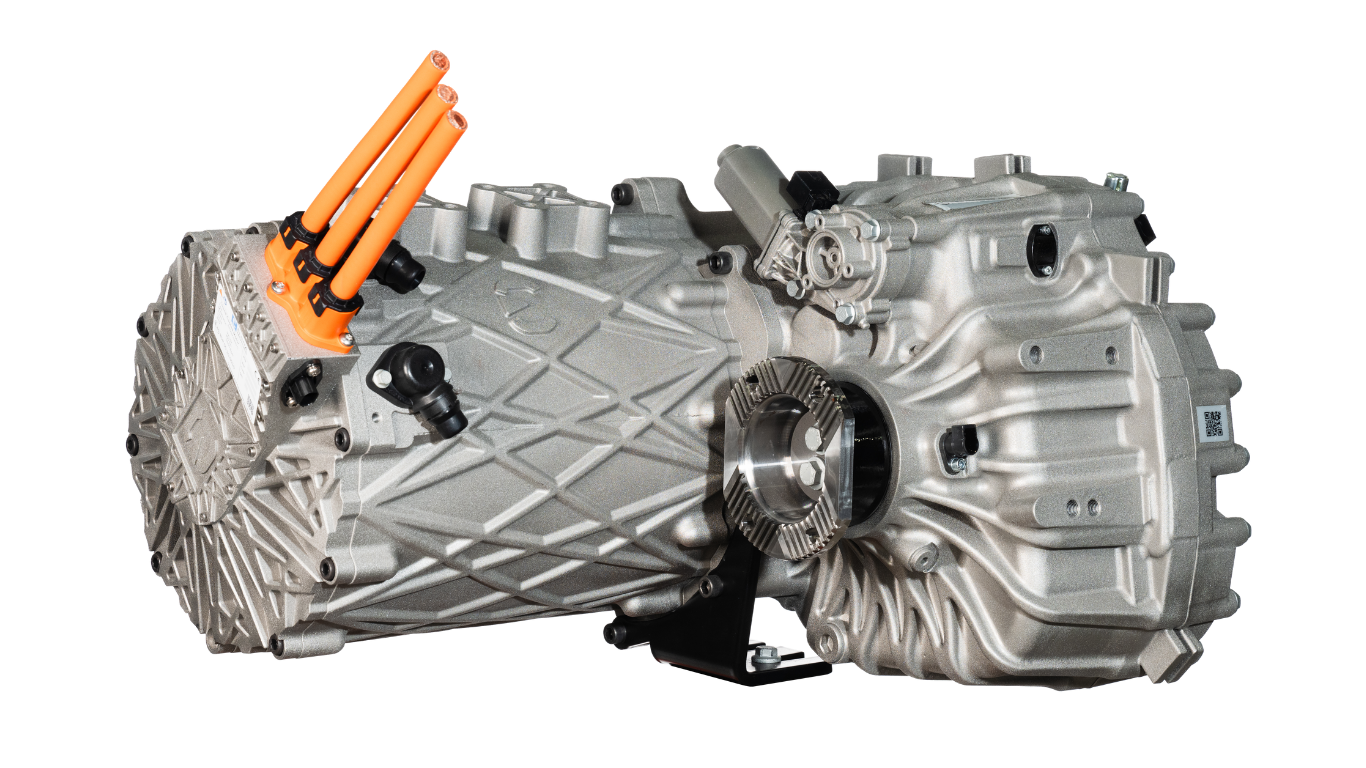

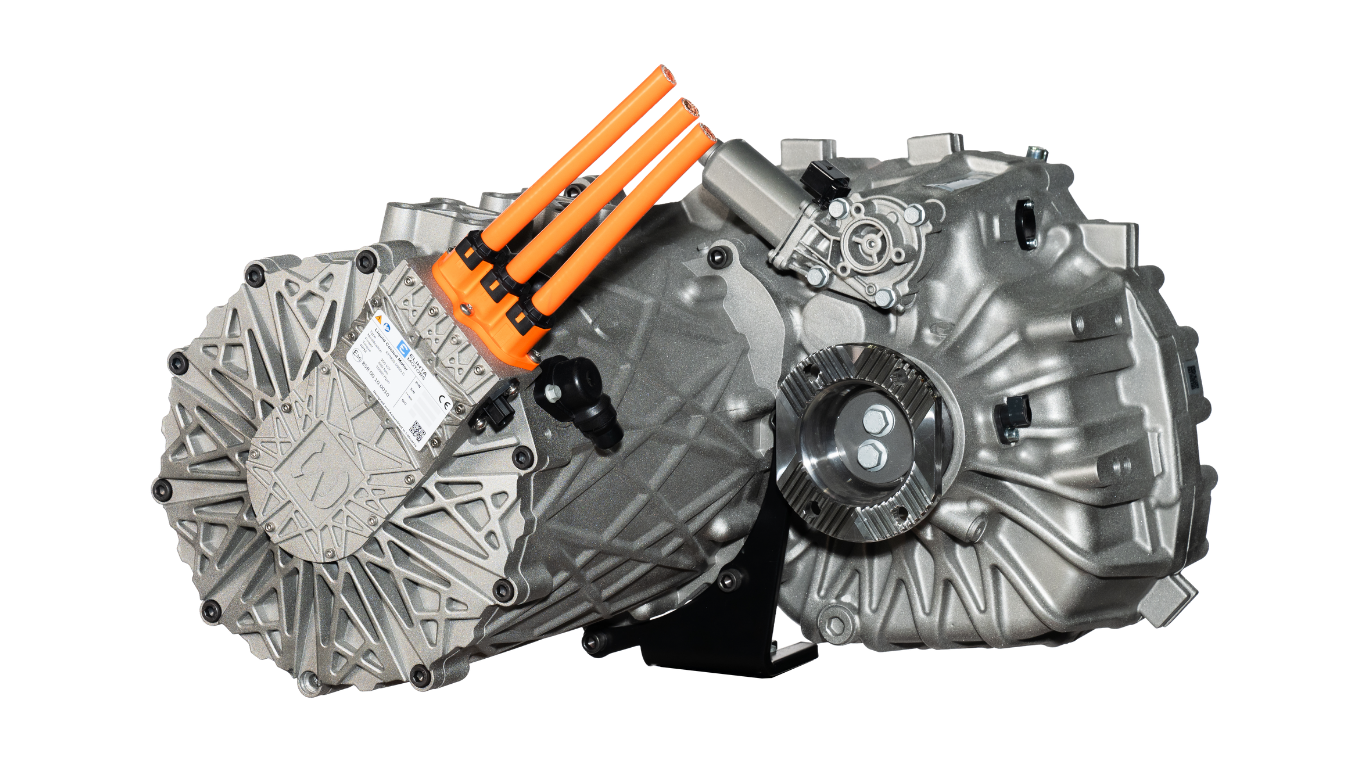

Gallery
