GEN IV MOTORS
Elinta Motors EPM.32.HS Series liquid cooled induction motor is designed for light to medium duty applications.
111 kg Weight
170kW High-Speed-Drive
94.2 % Efficiency
EPM.31.HS-SEV
Peak Power, Torque: 170 kW / 1450 Nm
Typical working voltage: 400 V / 800V
R-85 - 30 min power: 92 kW
Technical data
|
Key Features |
Power Rating |
Other Features |
|
Integrated encoder |
Peak Power, Torque: 170 kW / 1450 Nm |
Insulation Class - H-180C |
|
Integrated park-lock |
Typical working voltage: 400 V |
Max Phase Current: 670 A |
|
Low torque ripple |
R-85 - 30 min power: 92 kW |
Coolant 50/50 water-glycol |
|
No rare earth materials |
R-85 - 30 min torque: 630 Nm |
Coolant Flow: 18 - 20 L/min |
Performance @400V
| Motor Type | Peak Power | Cont. Power | Peak Torque | Cont. Torque |
| EPM.31.60.A | 170 kW | 105 kW | 1150 Nm | 600 Nm |
| EPM.31.80.A | 160 kW | 92 kW | 1450 Nm | 540 Nm |
| EPM.31.100.A | 150 kW | 82 kW | 1700 Nm | 510 Nm |
Performance @800V
| Motor Type | Peak Power | Cont. Power | Peak Torque | Cont. Torque |
| EPM.31.80.A | 280 kW | 125 kW | 1000 Nm | 600 Nm |
| EPM.31.100.A | 260 kW | 110 kW | 1250 Nm | 540 Nm |
| EPM.31.120.A | 220 kW | 98 kW | 1450 Nm | 510 Nm |

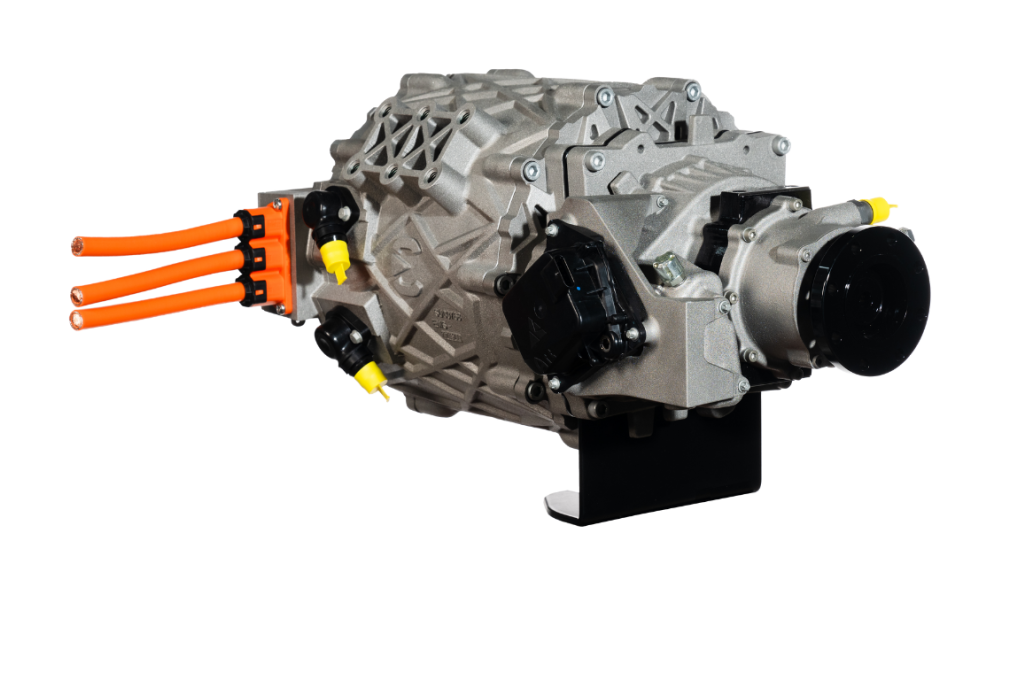

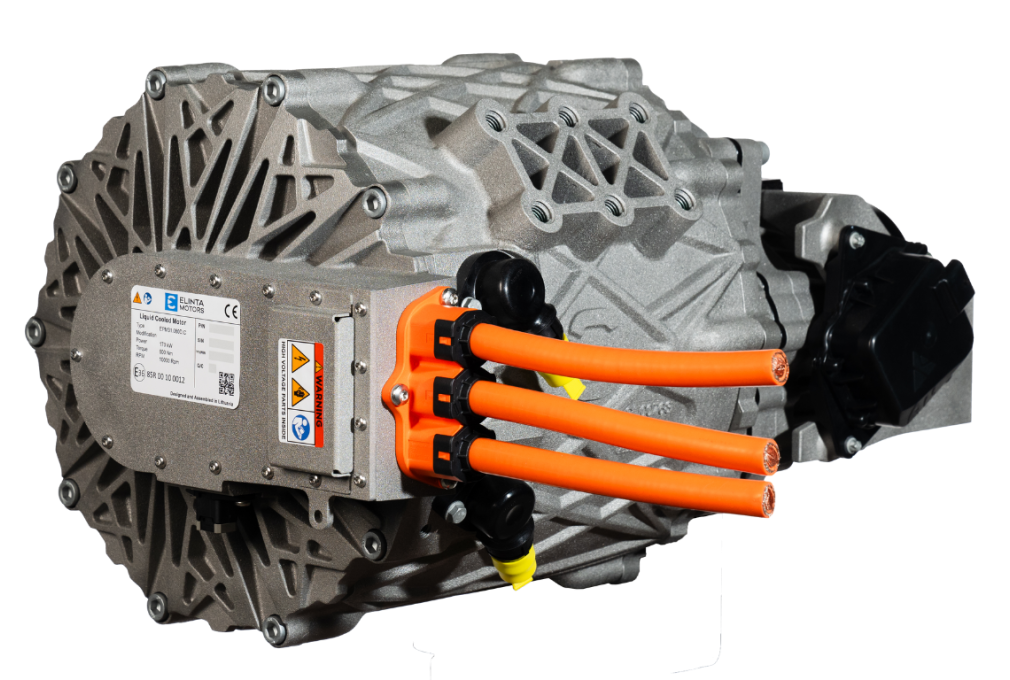

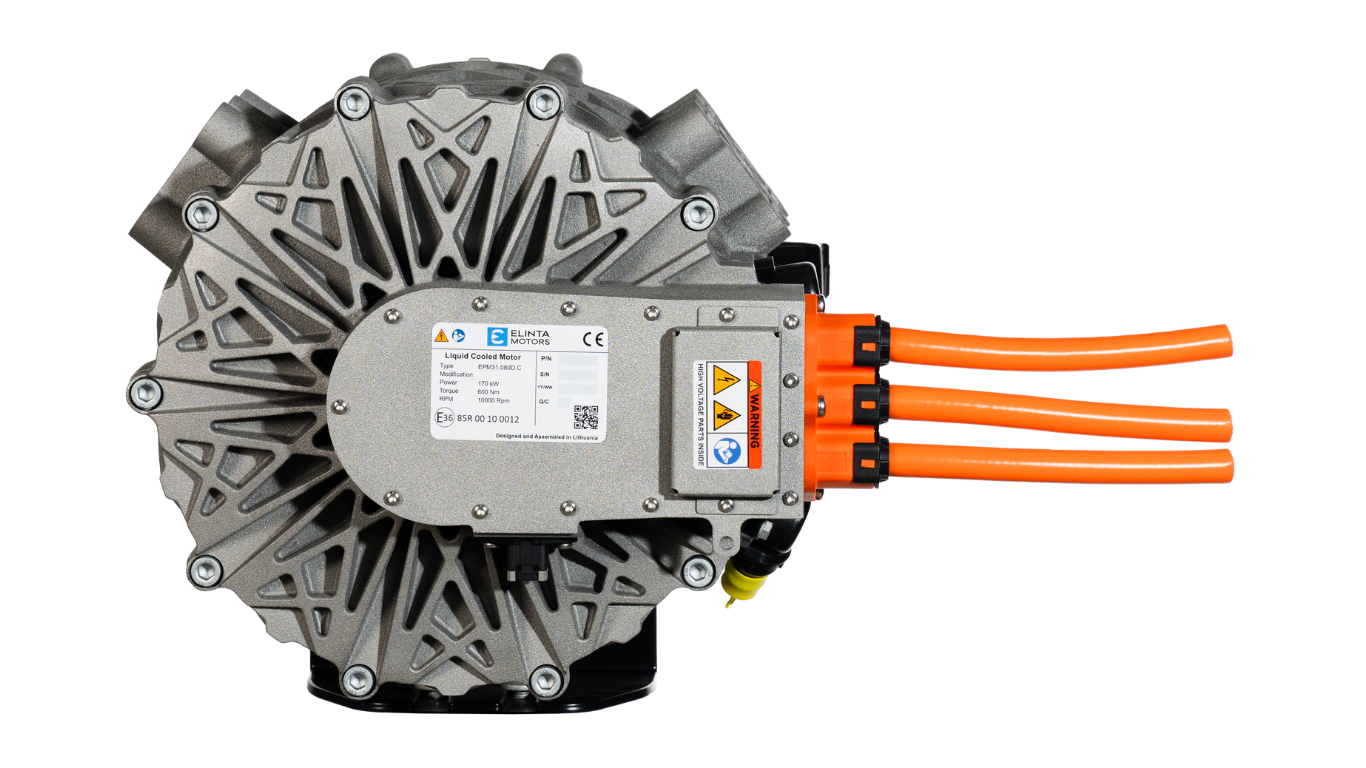

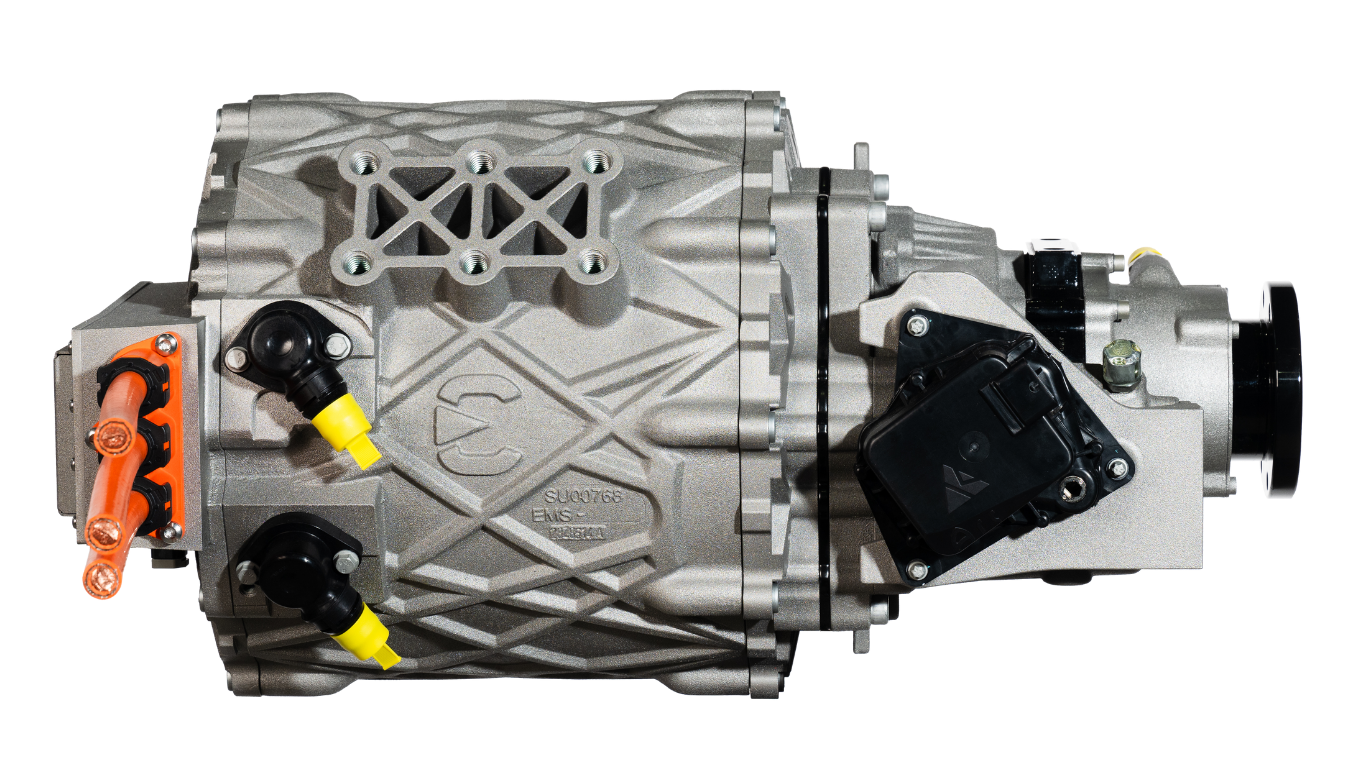

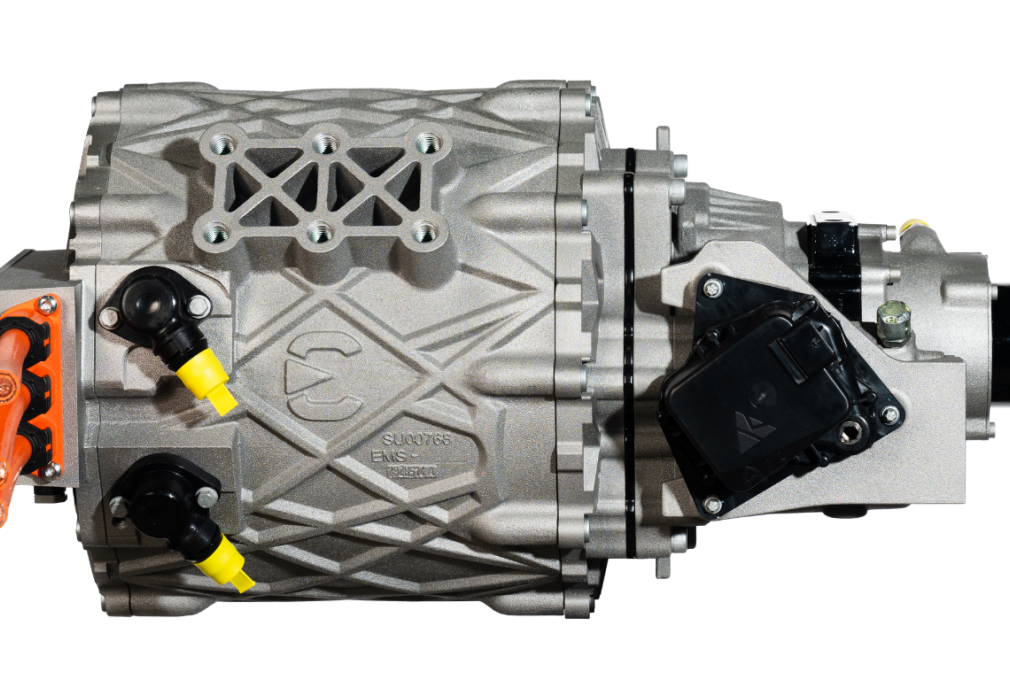

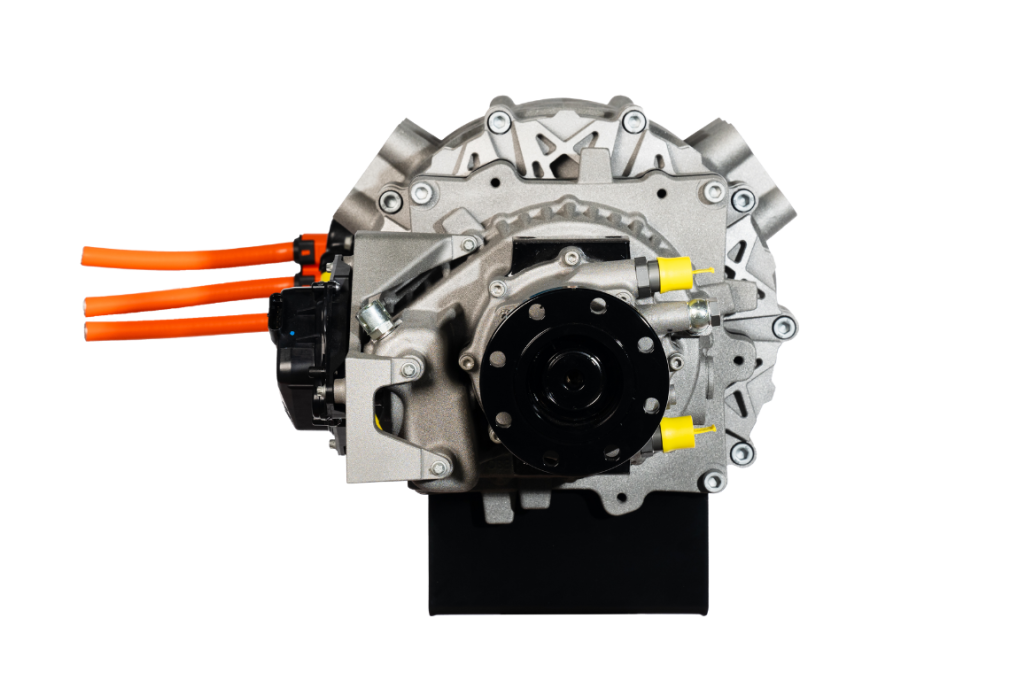

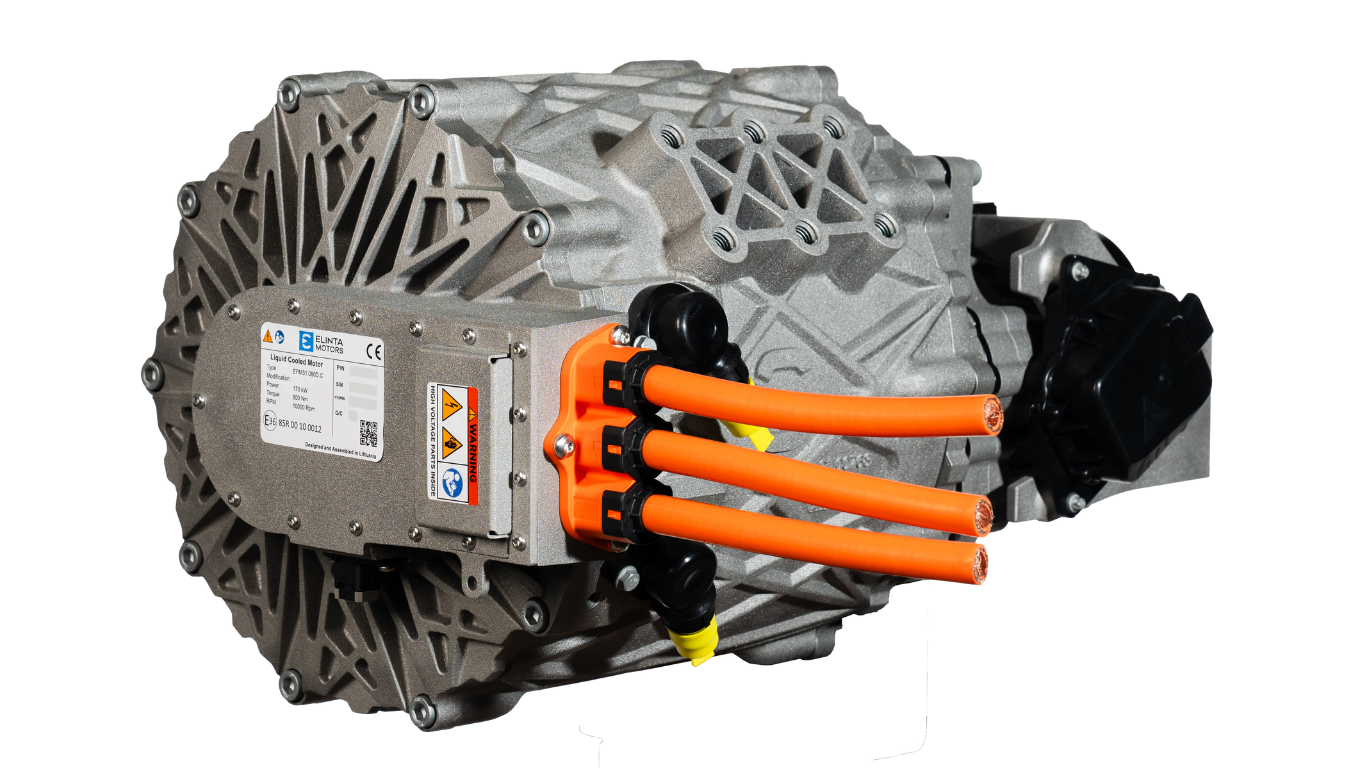

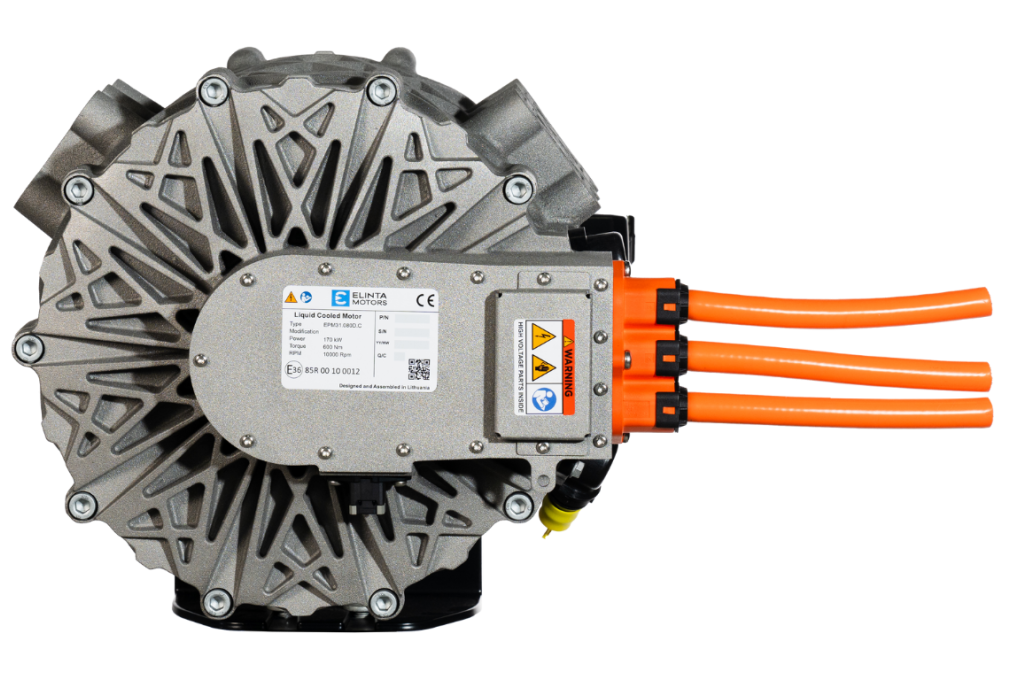

Gallery
